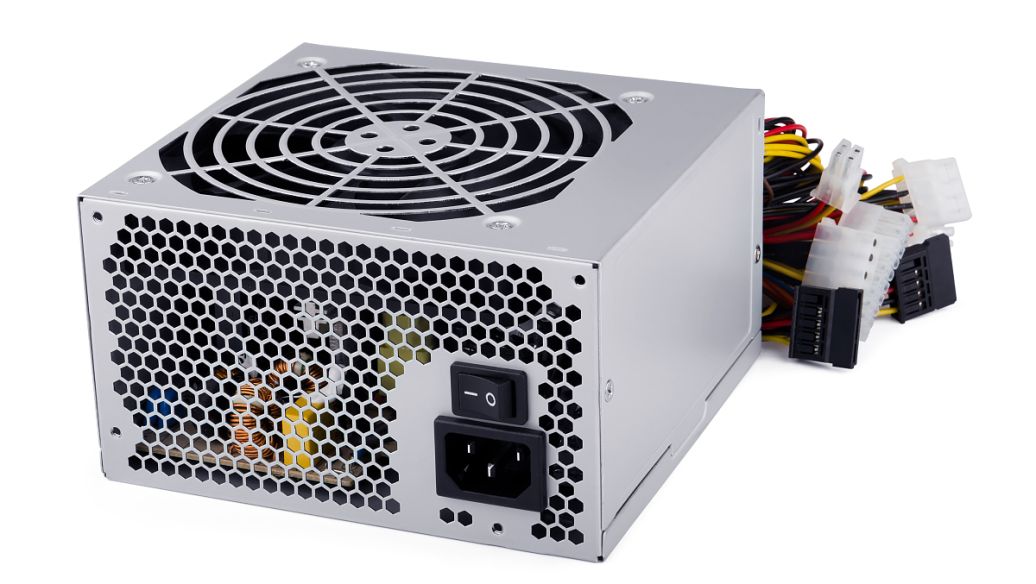

High-frequency switching power supplies (HSPs) have become a core power supply in industrial control, communications equipment, and renewable energy power supply sectors due to their high energy conversion efficiency. However, their internal components, such as high-frequency transformers and power switches, continuously generate significant heat during high-speed switching operations. Failure to dissipate heat effectively can not only lead to a sharp drop in power conversion efficiency but also accelerate component aging, triggering overload protection and even burnout. The Xingdong 4020 DC axial flow fan, with its precisely tailored dimensions and efficient heat dissipation, is a key component in addressing the heat dissipation challenges of high-frequency switching power supplies. The addition of the Xingdong 4020 DC axial flow fan ensures stable power output.

I. Heat Dissipation Pain Points of High-Frequency Switching Power Supplies

Densely packed components lead to concentrated heat generation: High-frequency switching power supplies have a compact internal space, with highly integrated power devices and magnetic components. This results in high heat generation per unit area during operation. Heat easily accumulates in confined spaces, creating localized high-temperature zones.

High temperatures impact core performance: For every 10°C increase in temperature, power device lifespan decreases by approximately 30%. High temperatures also increase conduction losses in switching transistors, reducing power conversion efficiency by up to 15%. Furthermore, high temperatures can disrupt control circuit stability, causing output voltage fluctuations and impacting the normal operation of back-end equipment.

Complex environments exacerbate heat dissipation pressures: High-frequency switching power supplies are often used in industrial workshops and communications rooms, where ambient temperatures can reach over 40°C. Combined with the heat generated by the equipment itself, this further exceeds heat dissipation limits and increases the risk of failure.

II. Core Advantages of the Xingdong 4020 DC Axial Fan

(I) Precise Dimensions for Perfect Fit in Tight Spaces

Compact and adaptable: The standard dimensions of 40×40×20mm allow for precise fit within the cooling duct or heat sink of high-frequency switching power supplies, eliminating the need to modify the power supply's internal structure, maximizing utilization of limited installation space and avoiding layout conflicts with other components. Thin and lightweight design without adding burden: The ultra-thin 20mm thickness allows for easy integration into miniaturized high-frequency switching power supplies, meeting the design requirements for lightweight and compact devices without occupying additional vertical mounting space.

(II) Efficient heat dissipation quickly overcomes localized high temperatures

Powerful airflow directly targets heat sources: The fan delivers 5.70-8.60 CFM of airflow, with a stable air pressure of 2.54-5.58 mmH₂O. It quickly penetrates gaps between internal power supply components, forcibly dissipating heat generated by core heat sources such as high-frequency transformers and power transistors, effectively reducing local temperatures.
Wide voltage adaptability and compatibility with power supply systems: Supporting a wide range of 5V-12V input voltages, it directly connects to the auxiliary power supply interface of high-frequency switching power supplies, eliminating the need for additional power modules. This simplifies circuit connections and improves system integration efficiency.

(3) Intelligent Temperature Control, Balancing Energy Saving and Quiet Operation

PWM Speed ​​Control for On-Demand Cooling: Built-in PWM speed control automatically adjusts the speed based on the load changes of the high-frequency switching power supply—running at low speeds under light loads to reduce energy consumption and noise; running at high speeds under heavy loads to maximize heat dissipation, achieving "on-demand cooling."

Low-Noise Design Adapts to Multiple Scenarios: Featuring aerodynamically optimized blades and oil-retaining bearings or double ball bearings, the DC Axial Fan 4020 produces minimal vibration and low noise, ensuring quiet operation even in noise-sensitive environments such as communications rooms and laboratories.

(4) Durable and Reliable, Handling Complex Operating Conditions

Stable Operation over a Wide Temperature Range: Supporting an operating temperature range of -10°C to 70°C, it adapts to both high-temperature industrial environments and low-temperature storage scenarios. It maintains a stable speed even in extreme temperatures, preventing fan stalls caused by sudden temperature fluctuations. Long Life and Maintenance-Free: Equipped with a pure copper coil motor, it boasts a service life of up to 80,000 hours, reducing the maintenance frequency and cost of high-frequency switching power supplies. It also features IP68 dust and water resistance, preventing dust and even small splashes of water from entering the fan.

Choosing the Xingdong 4020 DC axial-flow fan means choosing a reliable heat dissipation guardian for your high-frequency switching power supply. Whether it's an industrial-grade high-frequency power supply or a communication base station power supply, Xingdong DC axial-flow fans provide efficient, stable, and durable performance, ensuring a strong heat dissipation barrier for power output and long-term, safe operation.

Due to their wide adaptability in performance and operating voltage (e.g., 5V/12V), DC axial-flow cooling fans are suitable for a wide range of electronic devices, including power supplies, smart appliances, racks, cabinets, and various industrial equipment. When selecting a fan, we recommend choosing the appropriate model and specifications based on the device's cooling requirements, space constraints, and fan quietness requirements.
